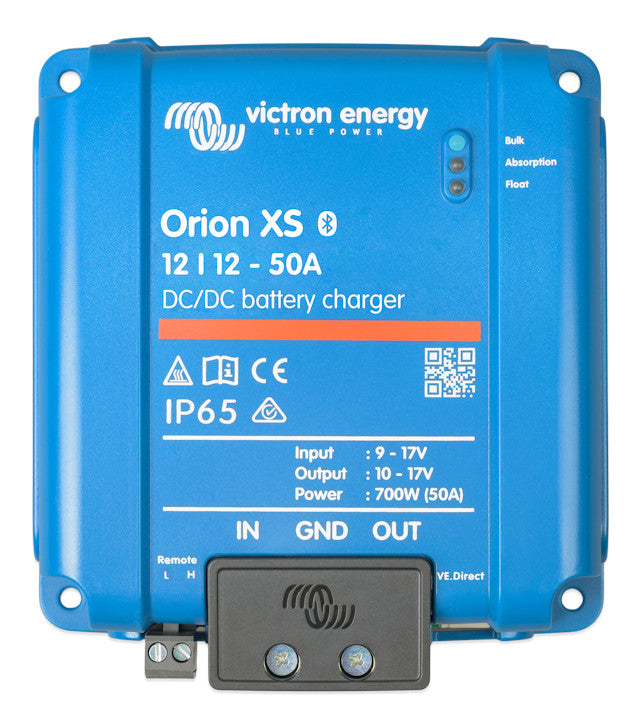

Victron Orion XS 50A DC-DC Charger

The Orion XS is designed with a rugged IP65 classification rating.The built-in alternator protection regulates input current to the alternator's safe zone for optimal charging and safety.

Performance and Efficiency
Input Voltage Range	9v ~ 17v
Output Voltage Range	10v ~ 17v
Output Voltage Tolerance	+/- 0.25% (max)
Maximum Efficiency	98.5%
Continuous Output Power	700W (up to 40°C)
Current and Power Management
Input & Output Current Setting Range	1 - 50A
Maximum Constant Short-Circuit Current	50A
Output Voltage Tolerance	+/- 0.25% (max)
Maximum Efficiency	98.5%
Continuous Output Power	700W (up to 40°C)
Can be used as a power supply with adjustable output via the VictronConnect app.
Connectivity and Control
Bluetooth	Yes
VE.Direct	Yes
DC Connection	Screw Terminals
Maximum Cable Cross Section	25mm (AWG 4)
Energy Consumption
No-load Current Consumption	Under 100 mA
Standby Current Consumption	Under 1.5 mA
Environmental Specs and Dimensions
Operating Temp Range	-20°C to +60°C (derating 1.5% per °C over 40)
Humidity	Max. 95% (Non-Condensing)
Weight	0.33 kg
Dimensions (mm)	137.3 x 123.1 x 40
Protection Category	IP65
Safety and Compliance
Safety	IEC 62477-1
Emission	IEC 61000-6-3, EN 55014-2
Immunity	IEC 61000-6-2, IEC 61000-6-1, EN 55014-2
Automotive Directive	ECE R10-5

Choose the Orion XS for unmatched reliability and performance on the move. Made for 4x4 and campers, it ensures your journey is powered safely and efficiently, wherever the road takes you.The Victron Orion XS is designed for versatility, making it compatible with both conventional and smart alternators. Conventional alternators provide a consistent output, which many chargers are designed to handle. However, newer vehicles have smart alternators that vary their output based on driving conditions and battery charge levels to improve fuel efficiency and reduce emissions. This variation can pose challenges for standard DC-DC chargers.

The Orion XS stands out by adapting to the fluctuating output of smart alternators, ensuring optimal charging performance regardless of the alternator type. This capability allows the charger to maximise efficiency and extend battery life by accurately adjusting the charge parameters to suit the real-time output of the alternator. Whether your vehicle has a newer, eco-friendly smart alternator or a traditional one, the Victron Orion XS 50A ensures consistent, efficient and safe battery charging.
